Product Description

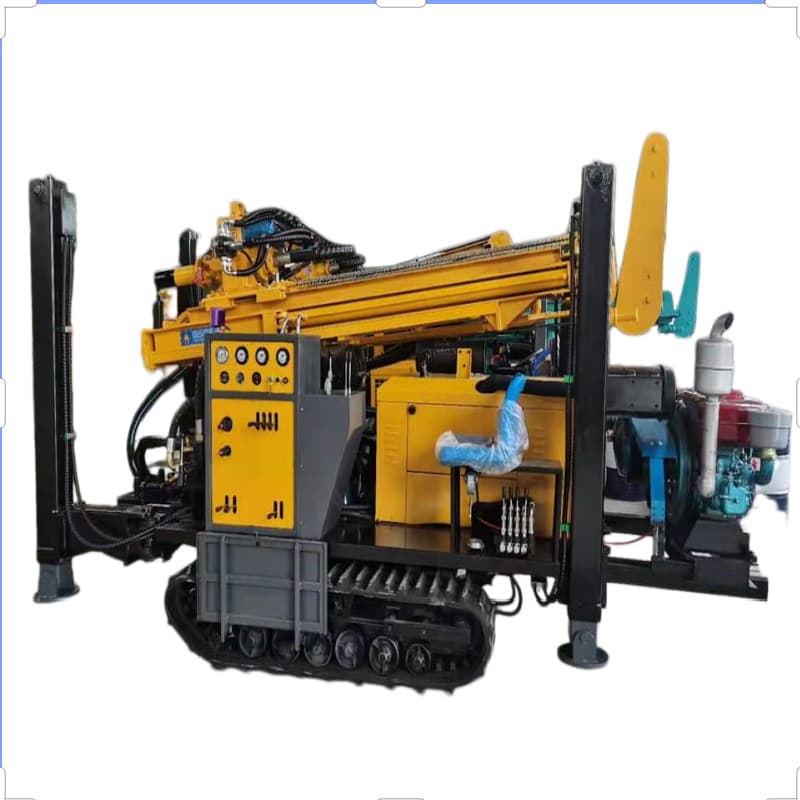

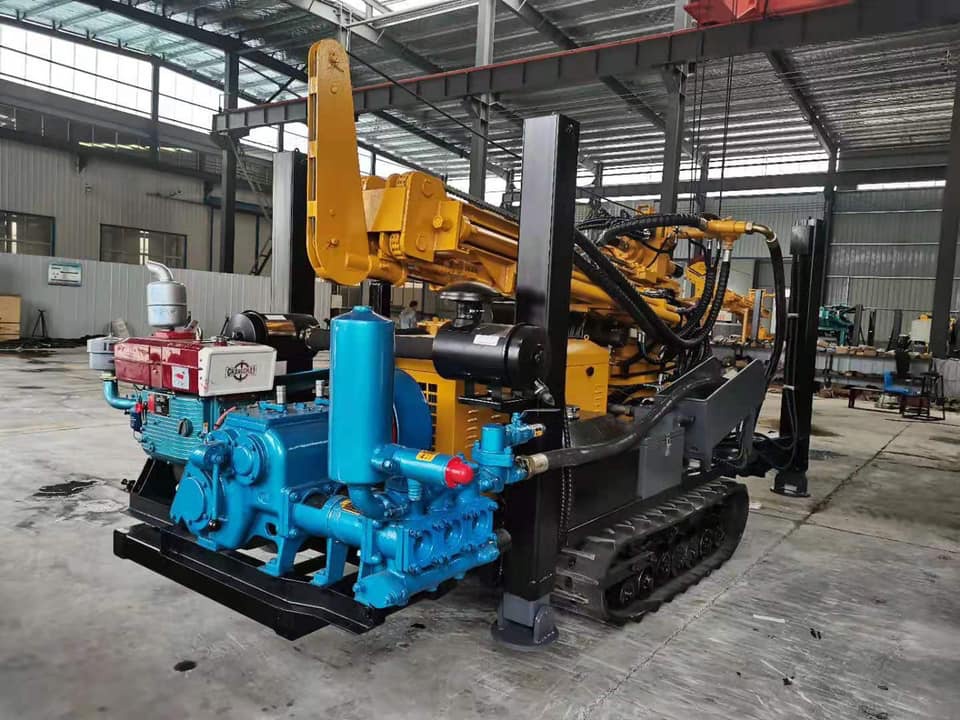

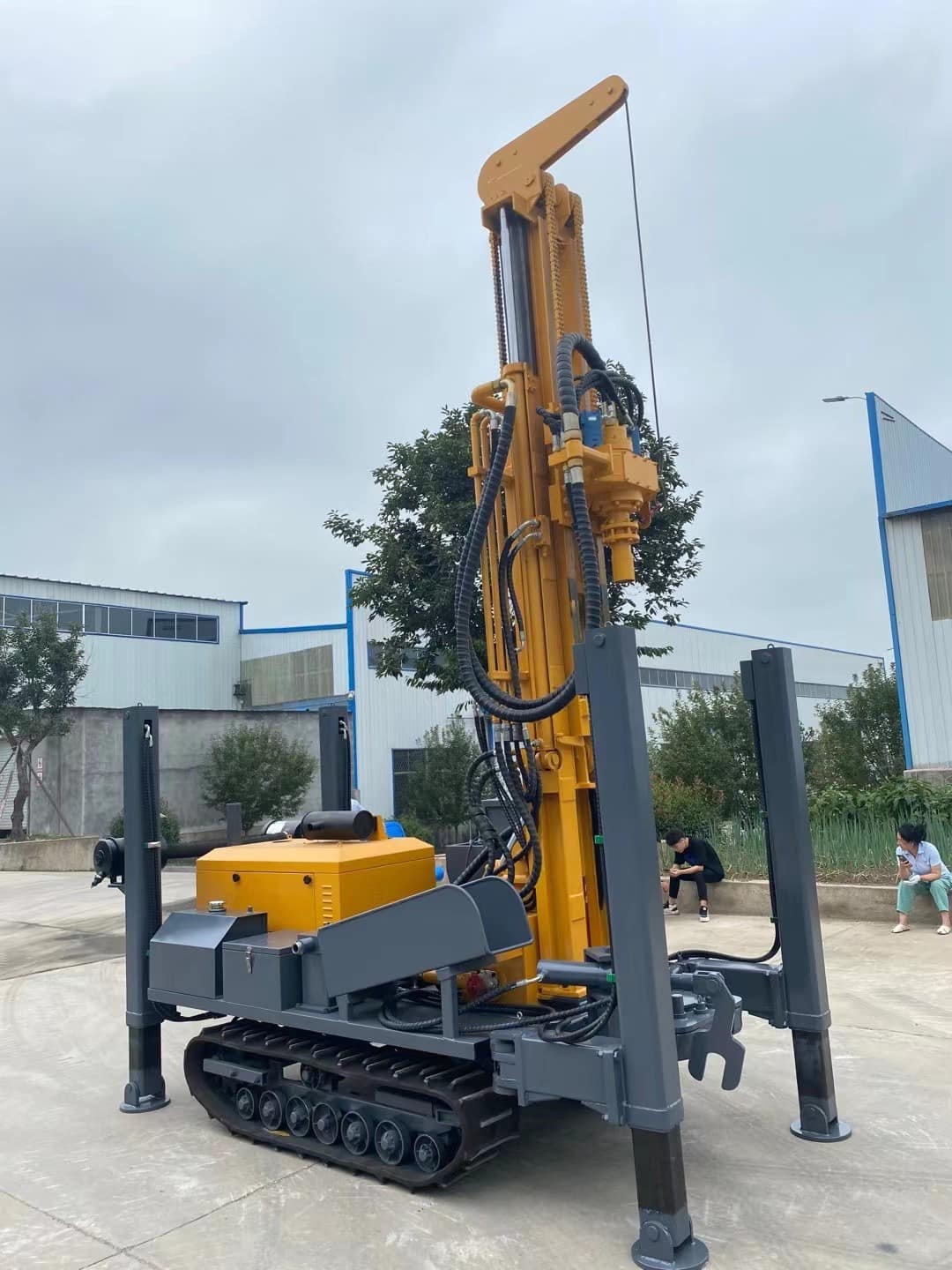

The DR260 Water Well Drilling Rig is a powerful hydraulic crawler drilling machine developed for medium and deep water well projects. Designed to handle demanding drilling conditions, the rig combines strong lifting capacity, high rotary torque and a robust crawler structure to ensure reliable performance across a wide range of geological formations.
With a drilling depth of up to 200 meters and borehole diameters ranging from 140mm to 350mm, the DR260 is suitable for water resource development, agricultural irrigation, geothermal drilling and infrastructure construction. Its reinforced mast design and long feeding stroke provide greater drilling stability and operational efficiency.
Built for Challenging Drilling Conditions
The DR260 is engineered for contractors who require dependable performance in difficult environments. Powered by a 75kW Xichai diesel engine, the rig delivers consistent power output while maintaining fuel efficiency during extended drilling operations.
Its advanced hydraulic system allows smooth control of drilling functions, ensuring stable performance in clay, gravel, fractured rock and hard rock formations. The machine supports multiple drill pipe lengths, offering greater flexibility for different project requirements.
Superior Drilling Performance
A maximum rotary torque of 5300N.m enables the DR260 to achieve excellent penetration rates in demanding geological conditions. The machine is equipped with a 15-ton lifting system and a 3.3-meter feeding stroke, allowing operators to drill deeper while reducing downtime associated with frequent rod handling.
The combination of high feeding speed and powerful lifting capacity improves overall productivity and helps contractors complete projects more efficiently.
Reliable Mobility and Stability
The heavy-duty crawler chassis ensures excellent stability during drilling operations while maintaining strong mobility on rough terrain. With a climbing capability of 30 degrees and a travel speed of 2.5km/h, the rig can easily access remote project locations and uneven work sites.

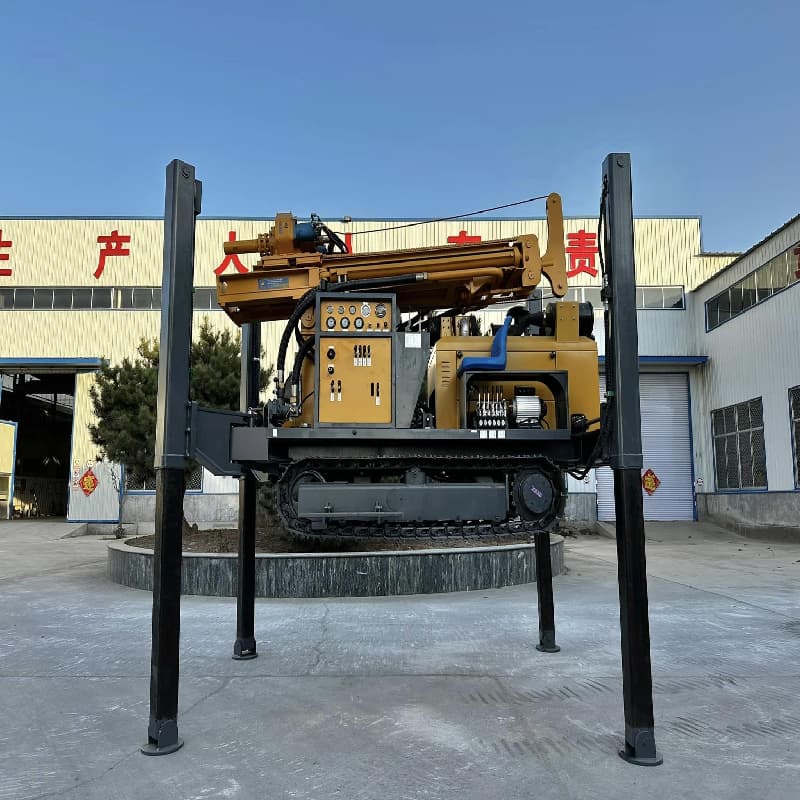

Hydraulic support legs with a 1.4-meter stroke further enhance machine stability, providing a secure working platform even on challenging ground conditions.
Technical Specifications
| Item | Specification |
| The weight | 6.5T |
| Drill pipe diameter | Φ76 / Φ89 mm |
| The hole diameter | 140–350 mm |
| Drill pipe length | 1.5 m / 2.0 m / 3.0 m |
| Drilling depth | 200 m |
| Rig lifting force | 15 T |
| One-time advance length | 3.3 m |
| Rapid rise speed | 24 m/min |
| Walking speed | 2.5KM/H |
| Fast feeding speed | 60 m/min |
| Climbing angles | 30° |
| Swing speed | 45–70 rpm |
| Equipped capacitor | 75kW |
| Hoisting force of winch | 1.5T |
| Using air pressure | 1.7–3.0 MPa |
| Swing torque | 4000–5300 N.m |
| Air consumption | 17–31 m³/min |
| Dimension | 4150 × 1850 × 2300 mm |
| The penetration efficiency | 10–35 m/h |
| High leg stroke | 1.4 m |
| The engine brand | xichai engine |
Why Choose DR260
Compared with compact drilling rigs, the DR260 offers a stronger structure, larger feeding stroke and higher torque output, making it a more capable solution for demanding drilling applications. The ability to use drill rods up to 3 meters in length helps reduce drilling time and improve operational efficiency on larger projects.
The machine combines durability, productivity and ease of operation, making it a practical investment for professional drilling contractors seeking long-term performance and reliability.
After-sales Support
We provide complete technical assistance, operator training, spare parts supply and online service support. Every DR260 drilling rig undergoes strict testing before shipment to ensure dependable performance in the field. Our service team is committed to helping customers maximize productivity and equipment lifespan.
