Product Description

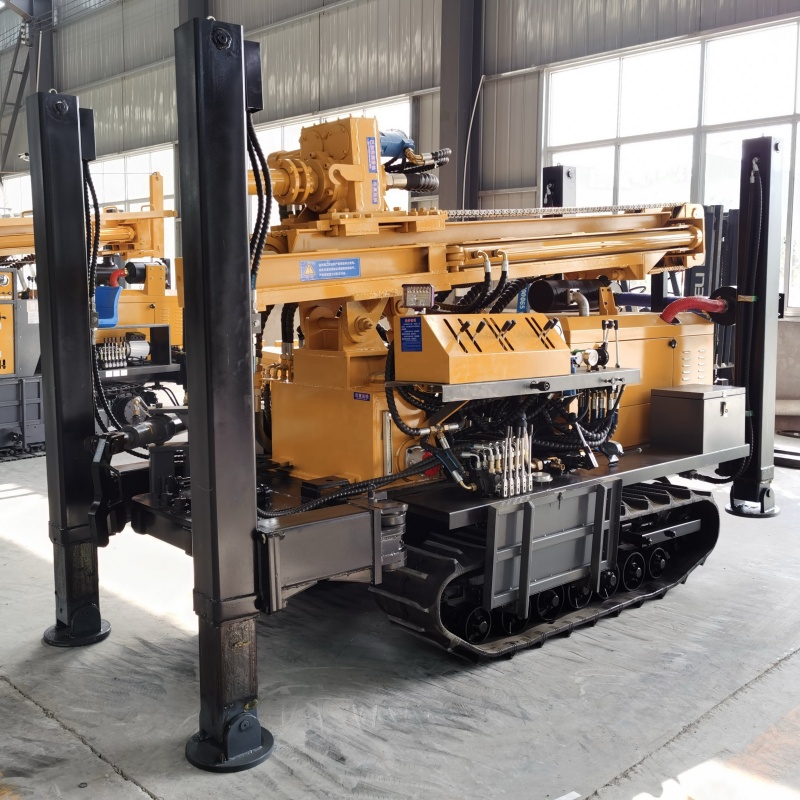

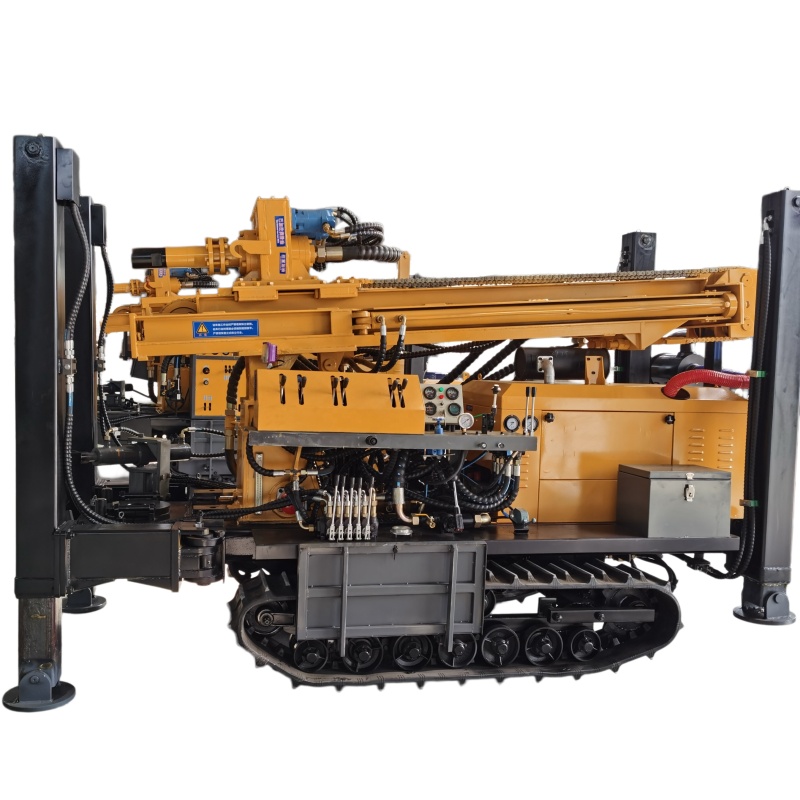

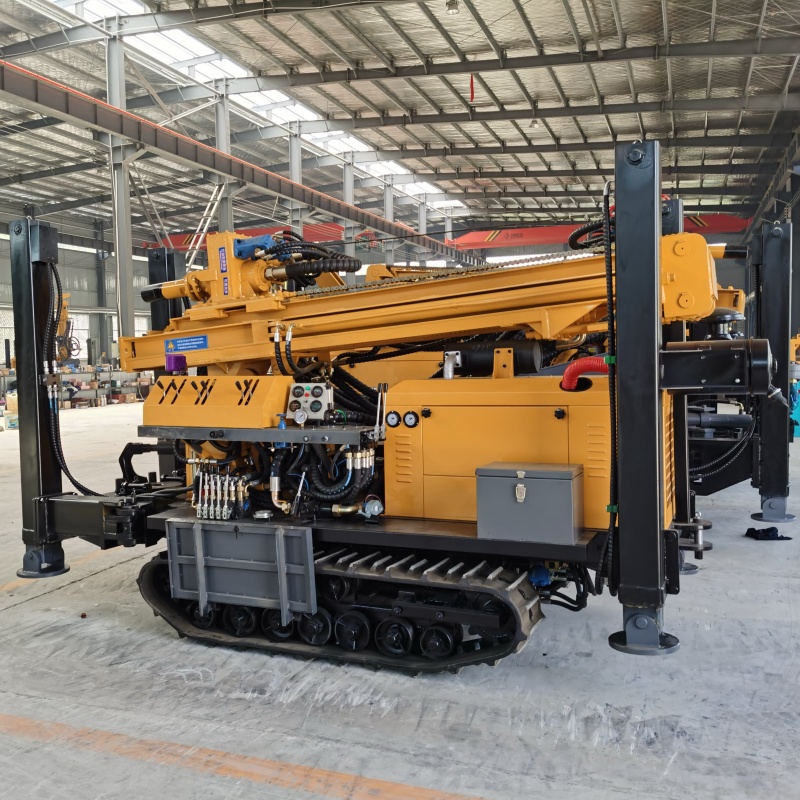

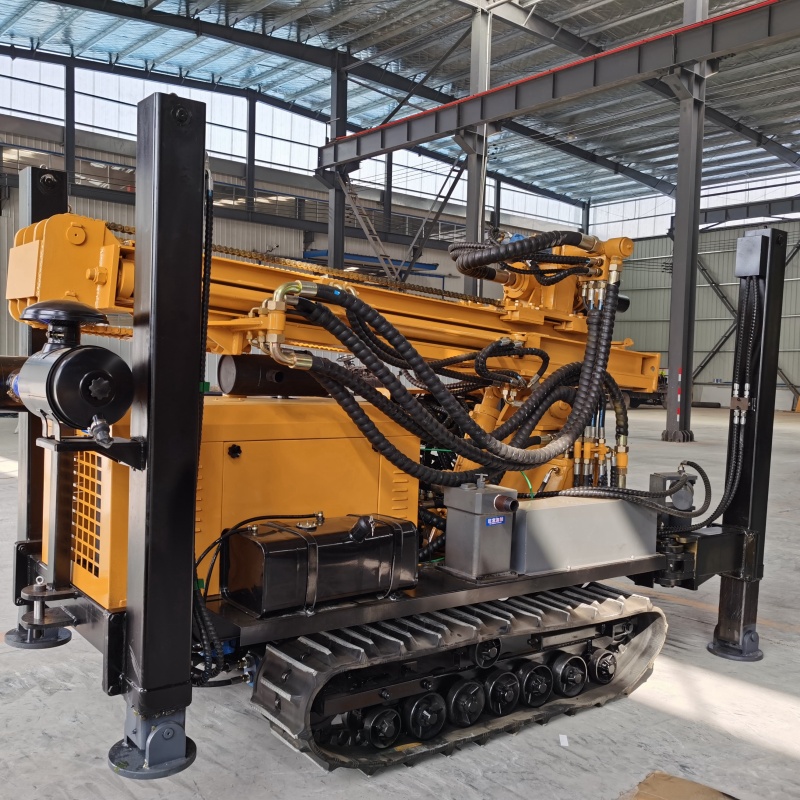

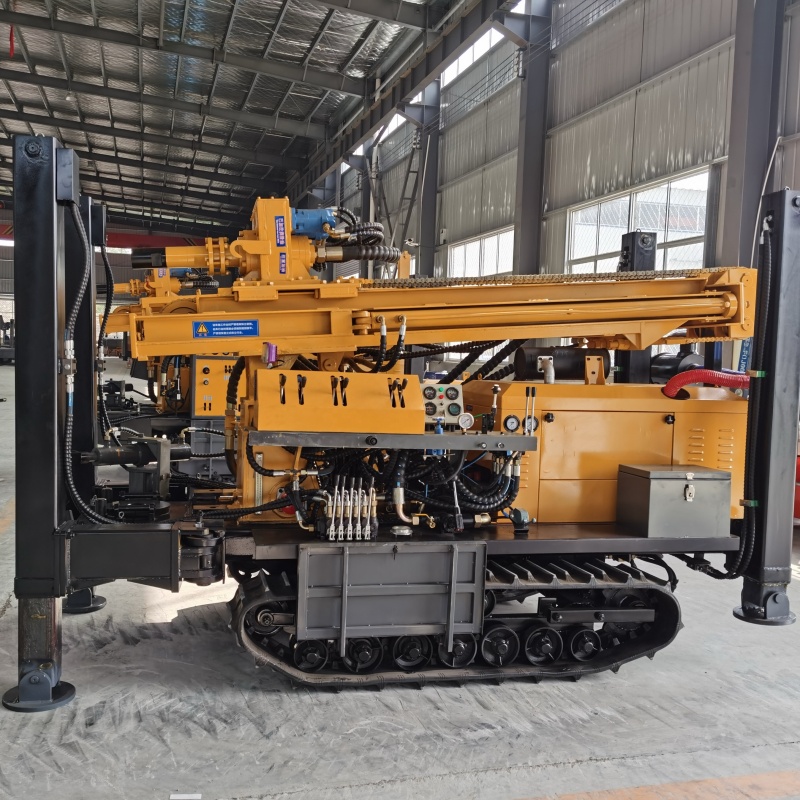

DR180 Water Well Drilling Rig is a compact hydraulic crawler drilling machine designed for water well drilling, agricultural irrigation, geothermal projects and geological exploration. The rig can drill up to 180 meters with a maximum borehole diameter of 300mm. Equipped with a powerful hydraulic system and high-torque rotary head, it delivers stable performance and high drilling efficiency in various geological conditions including soil, sand, gravel and rock formations.
The crawler chassis provides excellent mobility and allows the machine to operate efficiently on rough terrain and construction sites. The rig supports both air drilling and mud drilling methods, making it a versatile solution for different drilling projects.
Main Features
The DR180 adopts a full hydraulic control system for smooth operation and easy maintenance. The rotary head provides strong torque for effective drilling in hard rock formations. With a lifting force of 12 tons and a push force of 4 tons, the machine can handle drilling tools safely and efficiently.
Its compact structure makes transportation and site transfer convenient. The crawler chassis ensures stability during operation and provides excellent climbing ability in challenging environments. The rig is designed to offer reliable performance, low operating costs and long service life.
Technical Specifications
| Item | Specification |
| The weight | 4.7 T |
| Drill pipe diameter | Φ76 / Φ89 mm |
| The hole diameter | 90–300 mm |
| Drill pipe length | 1.5 m / 2.0 m / 3.0 m |
| Drilling depth | 180 m |
| Rig lifting force | 13 T |
| One-time advance length | 3.3 m |
| Rapid rise speed | 20 m/min |
| Walking speed | 20–40 km/h |
| Fast feeding speed | 40 m/min |
| Climbing angles | 30° |
| Swing speed | 45–70 rpm |
| Equipped capacitor | 55kW |
| Hoisting force of winch | 1.5T |
| Using air pressure | 1.7–2.5 MPa |
| Swing torque | 3400–4700 N.m |
| Air consumption | 17–31 m³/min |
| Dimension | 4150 × 1600 × 2450 mm |
| The penetration efficiency | 10–35 m/h |
| High leg stroke | 1.4 m |
| The engine brand | Quanchai engine |
After-sales Service
We provide comprehensive technical support, spare parts supply, operation guidance and online troubleshooting assistance. All drilling rigs are tested before delivery to ensure reliable performance and customer satisfaction. The DR180 is backed by professional after-sales service to support your drilling projects worldwide.
