Product Description

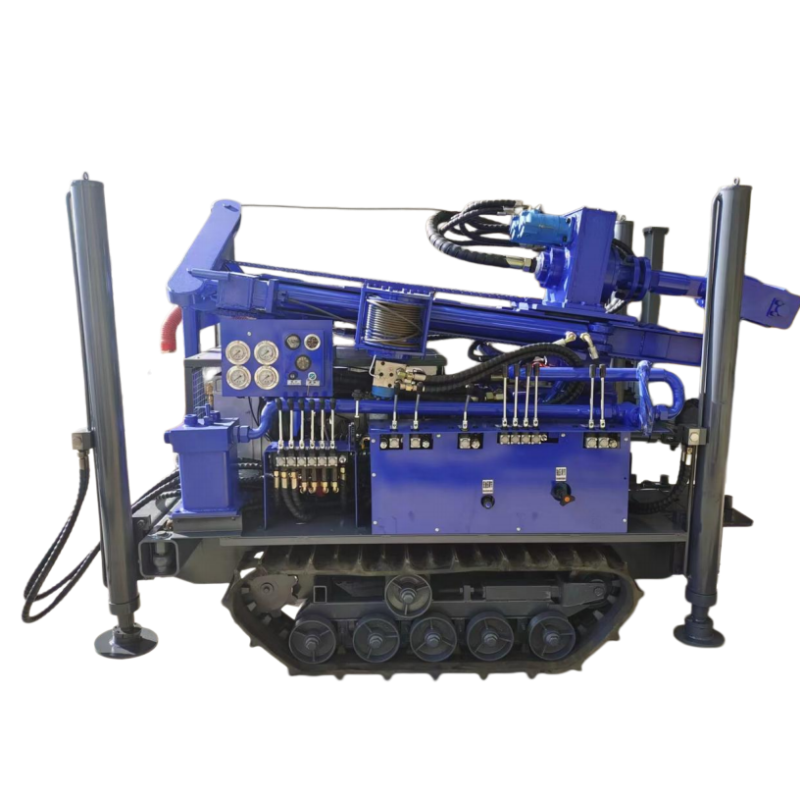

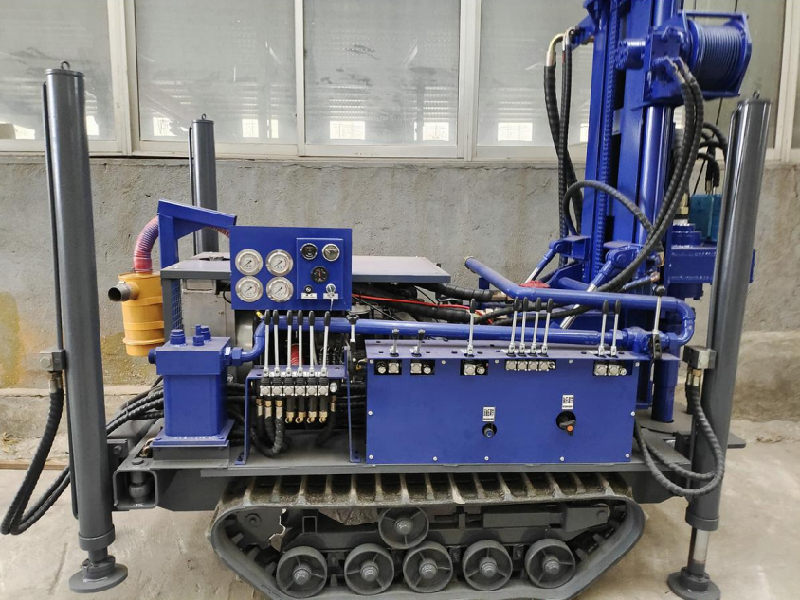

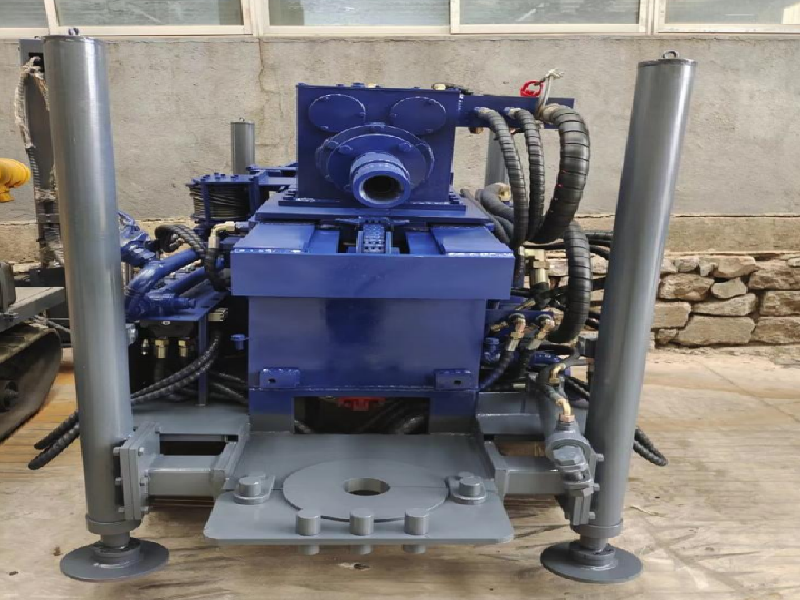

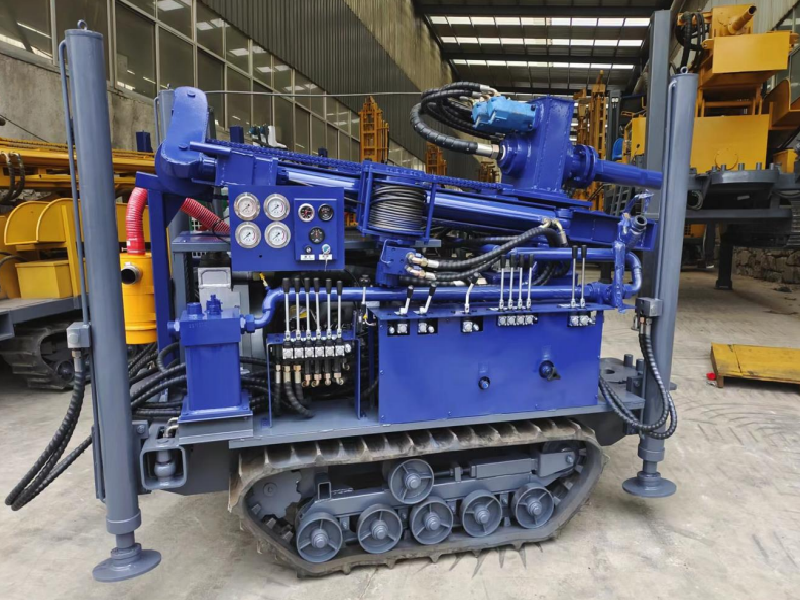

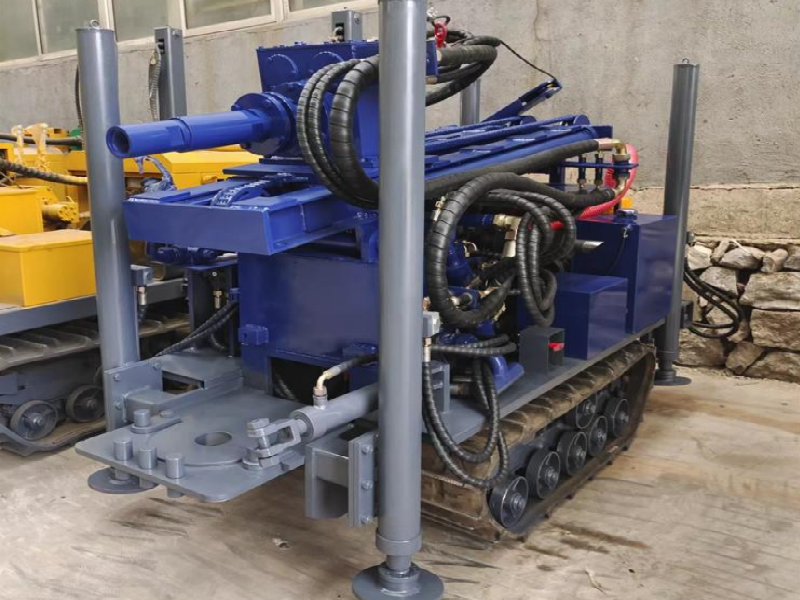

DR180M Water Well Drilling Rig is a compact and lightweight hydraulic crawler drilling machine specially designed for water well drilling, agricultural irrigation, rural water supply and geological exploration projects. With a maximum drilling depth of 180 meters and a borehole diameter range of 90-350mm, the rig delivers excellent drilling performance while maintaining easy transportation and low operating costs.
Compared with conventional models, the DR180M features a more compact structure and lighter weight of only 2900kg, making it ideal for projects with limited access, mountainous areas and narrow working sites. Equipped with a powerful Yuchai diesel engine and advanced hydraulic system, the machine offers reliable performance in a wide range of geological conditions.
Main Features
The DR180M adopts a full hydraulic operating system, providing smooth control and efficient drilling performance. Its high rotary torque of 4000-4600N.m enables strong penetration capability in hard rock formations.
With a lifting force of 15 tons and a one-time feeding stroke of 2.4 meters, the machine can significantly improve drilling efficiency and reduce rod changing frequency. The fast lifting speed of 24m/min and feeding speed of 60m/min help shorten drilling cycles and increase productivity.
The crawler chassis ensures excellent mobility and stability on rough terrain. With a climbing ability of 30 degrees, the rig can easily access remote drilling locations and challenging work environments.
The compact dimensions and lightweight design make transportation convenient while reducing logistics costs for contractors and drilling service providers.
Technical Specifications
| Item | Specification |
| The weight | 2900KG |
| Drill pipe diameter | Φ76 / Φ89 mm |
| The hole diameter | 90–350 mm |
| Drill pipe length | 1.5 m / 2.0 m |
| Drilling depth | 180m |
| Rig lifting force | 15 T |
| One-time advance length | 2.4 m |
| Rapid rise speed | 24 m/min |
| Walking speed | 2.5KM/H |
| Fast feeding speed | 60 m/min |
| Climbing angles | 30° |
| Swing speed | 45–65 rpm |
| Equipped capacitor | 77.3kW |
| Using air pressure | 1.7–2.5 MPa |
| Swing torque | 4000–4600 N.m |
| Air consumption | 17–31 m³/min |
| Dimension | 2300*1200*1900mm |
| The penetration efficiency | 10–35 m/h |
| High leg stroke | 1.4 m |
| The engine brand | Yuchai engine |
Advantages of DR180M
The DR180M combines deep drilling capability, powerful lifting force and high drilling efficiency in a compact machine weighing only 2900kg. Its lightweight design reduces transportation costs while maintaining the performance required for professional water well drilling projects. The machine is an ideal choice for contractors seeking a portable, efficient and cost-effective drilling solution.
After-sales Service
We provide comprehensive technical support, spare parts supply, operation guidance and online troubleshooting assistance. All drilling rigs are tested before delivery to ensure reliable performance and customer satisfaction. The DR180M is backed by professional after-sales service to support your drilling projects worldwide.
